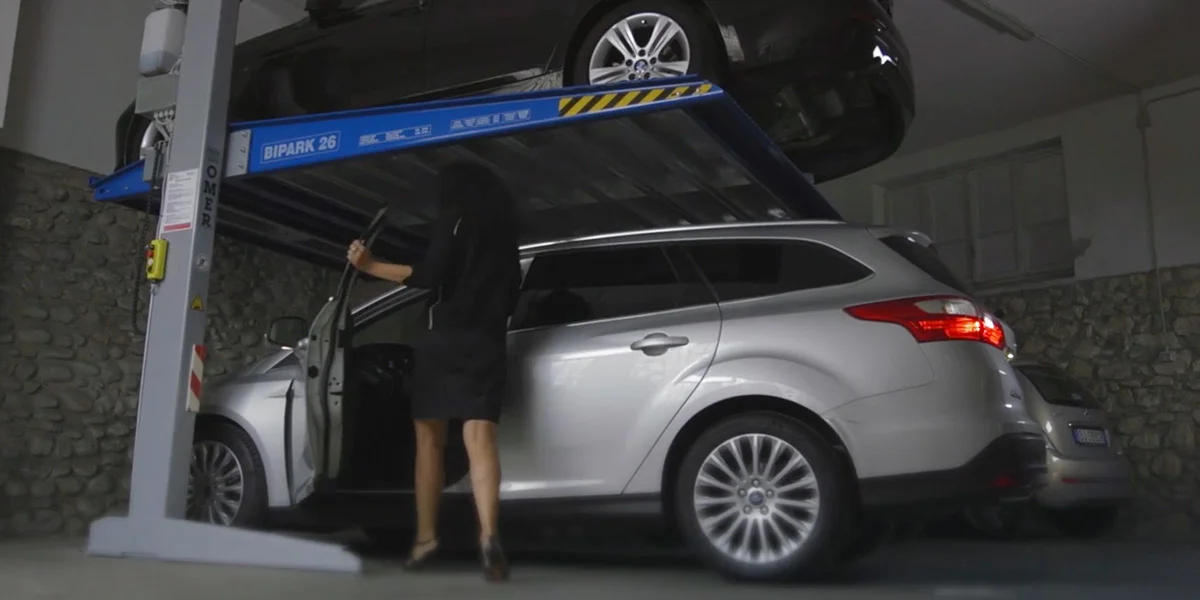

Lift cars smoothly and quickly into position without the need of a pit to operate.

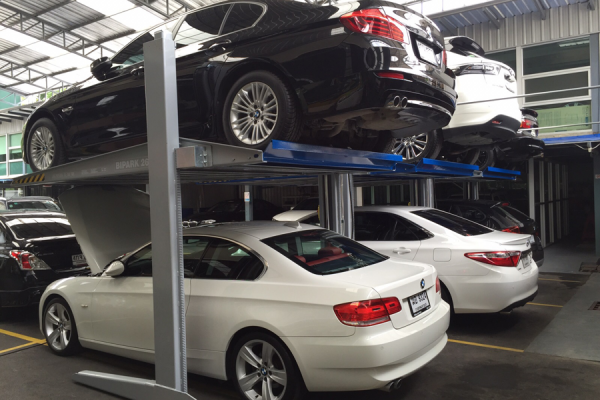

The first vehicle is simply parked on the platform and lifted up to a maximum height of 2.1 metres, allowing another vehicle to be parked underneath.
With a lift capacity of 2.6 tonnes, the Bipark 26 platform will accommodate vehicles of all types, from new generation 4WDs and SUVs to low clearance sports cars. The overall compactness of Bipark 26 minimises the required space, allowing several vehicles to be parked in a relatively small area.
Models
Model | Dimensions | Vehicle Type |
---|---|---|
CPS-BP 26 H1800 B2200 | 1.8 (lift height) x 2.2 meters wide | Standard Car |
CPS-BP 26 H2050 B2200 | 2.1 (lift height) x 2.2 meters wide | SUV |
CPS-BP 32 H2050 B2400 | 2.1 (lift height) x 2.4 meters wide | Wide width Vehicle |
Specifications
Description | CPS-BP 26 H1800 B2200 |
---|---|
Capacity | 3,200 kg |
Standard Lifting Height | 1,850 mm |
Max Lifting Height | 2,050 mm |
Minimum Platform | 1,500x3,619 mm |
Standard Platform | 2,200x3,619 mm |
Max Platform | 2,400x3,619 mm |
Net height | 1,800 mm |
Pit | |
Power | 1.5 kw |
Speed | 0.03 m/s |
Power supply | 400 v / 50 hz |
Standard Weight | 1,050 kg |
Features
The push button control panel can be installed in the most convenient position for controlling the lift, depending on your requirements. The platform features a front wheel stop bar set at the front edge of the platform. Plus, its galvanized structure is especially designed to prevent fluids from the upper vehicle dripping down on the lower one.
The Bipark 26 platform is extremely compact. The unit’s electrohydraulic system, the true heart of the machine, requires amazingly little space.
Bipark 26 unique torsion bar locking mechanism – a toothed pinion that is integral to the torsion bar itself and the electromagnetically operated dog – ensures that the platform can be safely stopped at any height.
The torsion bar-pinion assembly that engages the rack aligns the platform so that the weight on the platform does not need to be balanced. This allows the car to be parked nose-in or tail-in, or to be parked off-centre.
The Bipark 26 platform carriage is guided by wheels and molybdenum disulphide reinforced nylon guides, a combination that reduces friction between column and carriage, and lowers the power needed for operation. This arrangement also ensures that the machine remains in good working order, guaranteeing a long lifespan and reducing the need for maintenance.
The unique shape of the column also significantly reduces the unit’s dimensions, while increasing resistance and stiffness.
Bipark 26 push button control panel has a mushroom-shaped emergency button and a lockable activation key. When several of these units are installed side-by-side, the keys for each can be the same, or each one can be different, depending on your requirements.
The hydraulic double extension lifting cylinders permit direct lifting, without any auxiliary aids such as cables or chains.
The compactness of the electro-hydraulic assembly and the electrical panel – located at the top of the left hand column – offers the utmost efficiency in minimal space, ensuring unhindered parking of the car.
The vertical lifting height of the platform is set during the initial installation by means of locking steel plates mounted at the top of the columns. This guarantees safety by determining the peak lifting height, designed to customer requirements and the installation setting.
Video

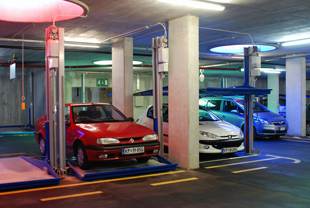

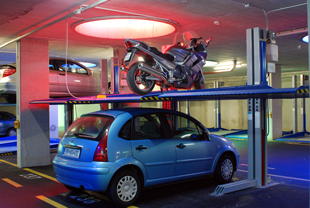

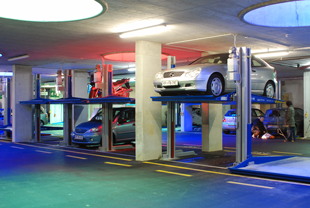

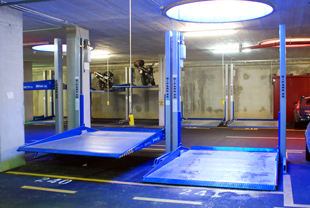

Gallery
Want to simplify your parking?
Start today.
Cloud Parking Solutions can assist you with consultancy, specification, design and build services for your building project. Our experienced car parking consultants can offer bespoke car lift solutions to suit a wide range of challenges.
To discuss a customised car lift solution for your building design, call us:
Will Orrick: 027 498 3384 or Brent McCarty: 021 983 895
